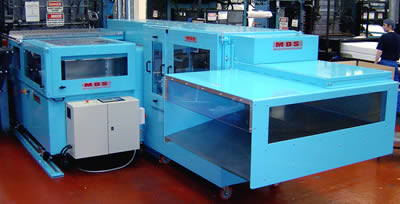

A fully automatic,
multi-axis servo driven Food Tray Collating and Bagging machine, designed
to reduce manning levels on an Irwin manufactured EPS forming line.
The unit locates into the output of the existing Trim Press punch /
die platen and, operating in conjunction with an MDS Ltd designed Punch
Ejector System, collates 3 lanes of product at up to 75 cycles/min.
Once the preset count has been reached (125 trays, typically) each
lane is indexed to the Bagging station where it is inserted into a “Wicketed” Bag
and transferred back to the operator. Due to this particular EPS line
having to run completely different products from time to time, MDS
Ltd has designed the system to be fully mobile – separating easily
into 2 units, the above system can be unplugged and replaced with the
original packing table in approx. 15 minutes. |
